SL 9011139 4th of July Celebration Astronaut with American Flag on Illuminated Ice in an SL Mini-Max Gondola
Featuring an Astronaut holding an American Flag on Ice, illuminated by 11 White LEDs via track power, LED controller, PIKO Metal Wheels, LGB Hook-Loop & SL Walk-Way Couplers, Assembled & Wired - Ready to Run
BRAND NEW - never run - Made in the USA
This is one of several new holiday SL Mini-Max cars from the Shourt Line.
Photo shows the LGB Hook and Loop couplers Installed. The WalkWay Platform & Link Pin Couplers are also included but now shown. (track is not included with item)

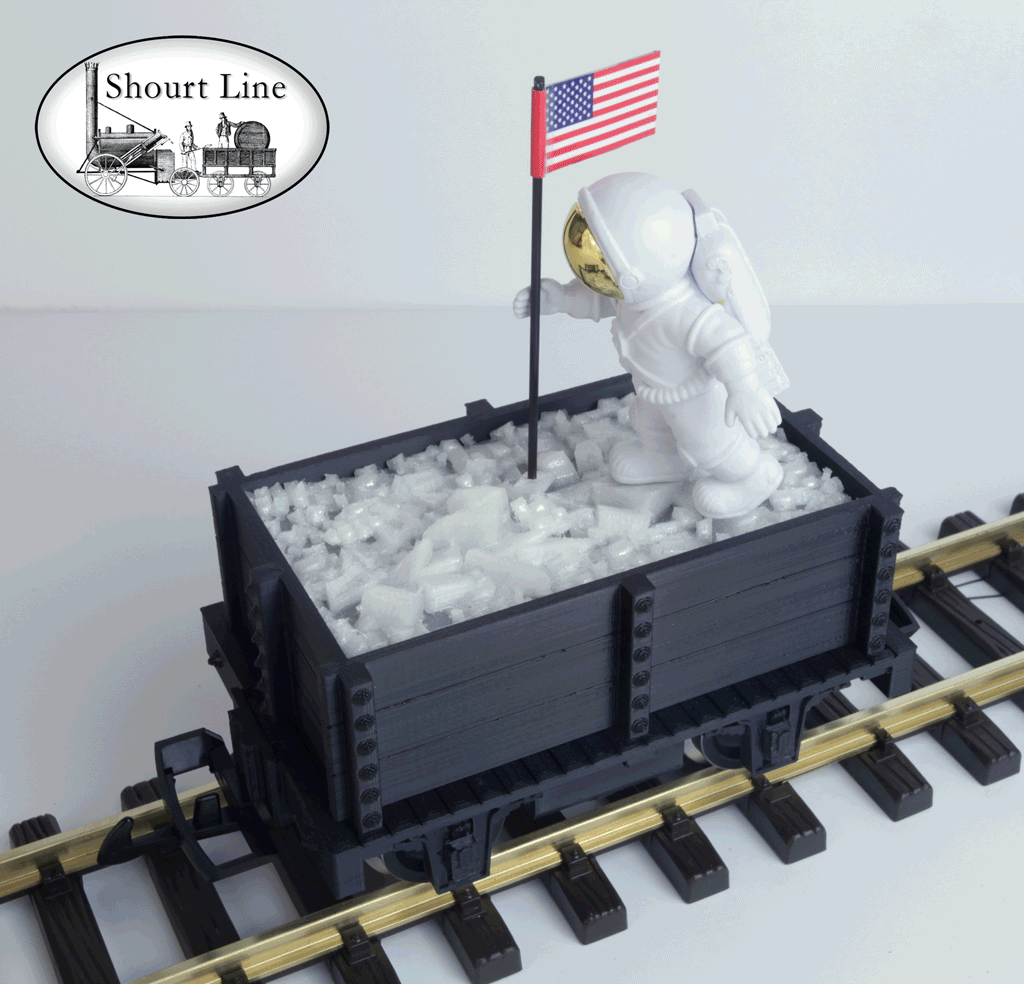

Animated view showing Ice illumination turned on and off.
For questions - Call 310-622-4431 or email info@ShourtLine.com
Shourt Line Direct Discount Price: $299.95 New
Features:Assembled, wired and ready to run from track power.
All SL Mini-Max cars share these features:
- Realistic wood texturing on base and other wood surfaces
- Standard dark brown wood color base and gondola wall, black color available on request
- Compatibility with any coupler made for LGB Cars, mounting pads on each end use any LGB type coupler for complete compatibility with LGB, PIKO and other G Scale trains.
- LGB 64407 New in the Bag - Universal hook and loop couplers + SL 2 mounting screws
- PIKO 36164 Metal Wheels of 2 axles
- SL 1109001 Set of 2 SL Walk-Way platforms and 2 coupling link pins for secure coupling of SL Mini cars - Black Hi Temp. ABS plastic
- Ingus iglide® self lubricating bearings 2 on each axle for extreme low friction, long life, and contamination free Indoor-Outdoor operation.
- The bed of all SL Mini Cars have 2 sockets at each end of the car for mounting Walk-Way Platforms and a 1mm socket for holding the SL Chain Pin included with purchase of the optional LGB 64777 Link & Pin Coupler Set of 3 (see photo below)
- Highly Wear Resistant High Temperature ABS plastic
- Indoor and Outdoor Use
- Works on work on all G scale track including R1 curved track (starter set track)
- Wire routing tunnels and wire recesses for cars for car wire connections
- High temperature ABS plastic for indoor/outdoor use.
- Ready to run
- Made in the USA by SWL4.com
The SL 9011139 4th of July Mini-Max gondola as these additional features:
- Standard 1.5 Inch high 3 board wall gondola wall
- 11 White LED fixture for even illumination
- Transparent Ice Load
- G Scale Astronaut with gold reflective face plate (removable from the Ice Load)
- An American Flag on a carbon fiber pole (removable from the the Ice Load)
- SL Brakeman's Box containing:
- SL extremely low drag power pickups from the four wheels
- SL LED controller/dimmer for conversion of track power pure DC LED power
- SL Anti-flicker buffer
- Operates on AC, DC or DCC track power
Items included:
- SL 1008039 SL 1008039 Gondola with Car 3 board wall height (1.5 inch high gondola wall)
- Standard Colors: Dark Wood Base and gondola fence and black axle supports - black color avaialbe for base and/or fence on request
- PIKO 36164 Metal Wheels - Installed with 4 each Ingus iglide® self lubricating bearings
- LGB 64407Universal hook and loop couplers New in the Bag
- SL 1109001 Set of 2 SL Walk-Way platforms and 2 coupling link pins
- SL 2308011 Mini Gondola Ice Load with holes for flag pole and Astronaut mounting plug
- SL 2308111 SL mini-car 11 White LED white fixture for Ice load bottom lighting from the base of car
- SL 2007001 SL Astronaut standing in Space suit with Gold Face Plate with mounting stud
- SL 2900202 American Flag mounted on a black carbon fiber post 2mm dia. X 96mm high
- SL 5690006 Brakeman's Box Case with 4 wheel power pickup and case contains; a Mini LED ctrl/dimmer, bridge for track power and anti flicker capacitor
- Printed Instructions
- Box & packing material for safe storage and transport
Couplers included with all Mini-Max cars:
The car comes with both LGB and Shourt Line Coupler Sets. You can install either or both at the same time. The Shourt Line Coupler set in stalls without tools. The LGB Hook and Loop Set comes in a sealed bag and 2 each Shourt Line mounting screws as the LGB set does not include screws. A philips screw driver is required to install the LGB coupler set. Here are the 2 sets of couplers that come with each MIni-Max car:
- LGB 64407 Universal hook and loop couplers. New in the Bag with 2 SL mounting screws

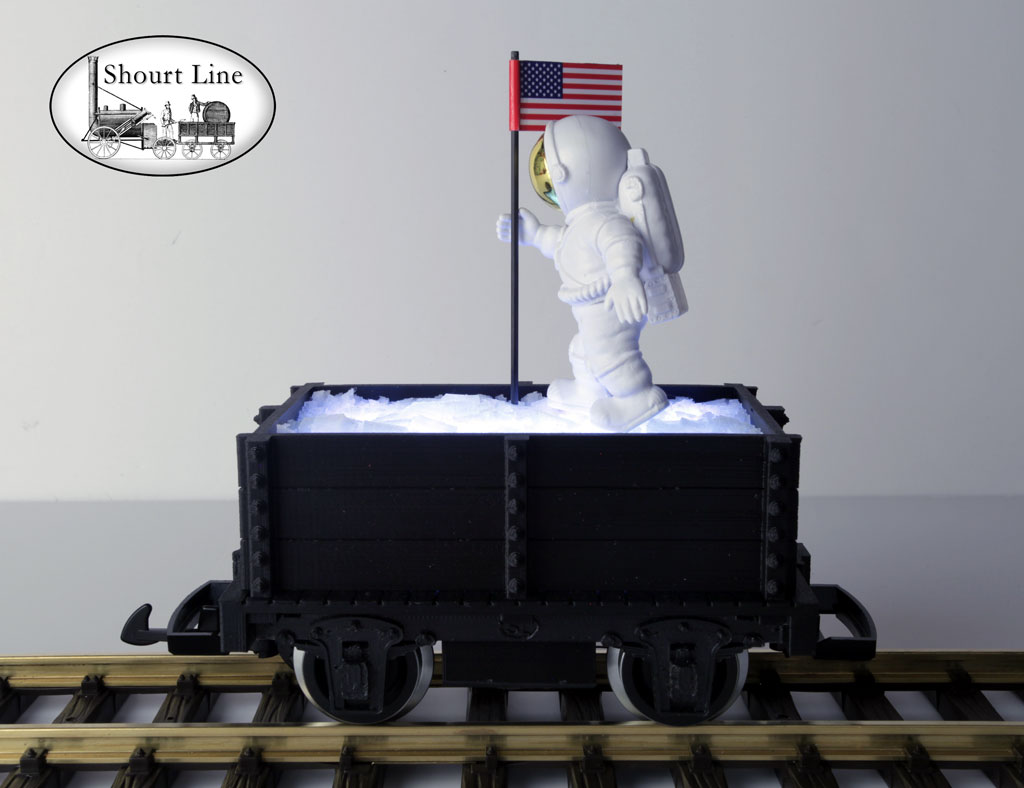

Side view showing with LGB 64407 Universal hook and loop couplers installed. (track, figures platforms, other cars, and lighting fixtures are not included with item)
- SL 1109001 Set of 2 SL Walk-Way platforms with 2 coupling link pins and 4 platform mounting pins - for secure coupling of SL Mini cars. Made with Black Hi Temperature ABS plastic. (no tools needed to install)

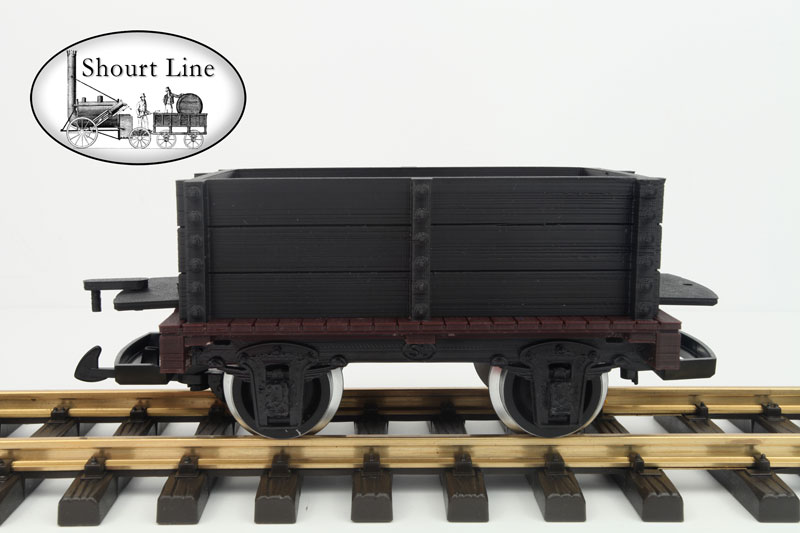

Side view showing the 2 SL Walk-Way platforms and 1 coupling link pin installed. (track not included with item)You can install both the LGB couplers and the SL Walk-Way platforms at the same time.
Both the LGB couplers and SL Walk-Way platforms with 1 link pin is shown above. This allows works to easily move from car to car and provide secure coupling using the Walk-Way platforms as couplers by inserting the link pins that come with each car. (track included with item)
Specifications:
Dimensions:
Length: Between car bumpers 140mm (5.5")
Length:Between Walkways or hook and loop couplers 180mm (7.2")
Width: 86.5mm (3.4")
Height: to top of bed 40.8mm (1.6")
Height: from the top of bed to the top of 3 board gondola wall 79mm (3.1")
Height: from the track base to the top of the flag pole 171mm (6.8")
Overall height: to the top of the flag pole is below that of LGB smoke stacksGondola 3 board high wall inside dimensions:
118Lx63Wx39H mm
Weight: 7.3 Oz (216 g)
Mfg: Made in the USA by SWL4.com
Options:
- Optional choice of Base and gondola wall color upon request.
- SL 2308001 Mini Gondola Coal Load, Black 118x63x10mm - drops into gondola car (shown above and below)
- SL 2308002 Mini Gondola Sand Load, Tan 118x63x10mm - drops into gondola car (shown above)
- SL 2308011 Mini Gondola Ice Load, transparent 118x63x10mm - drops into gondola cars Shown above and below)
- SL 2308031 SL mini-car 3 White LED white fixture for ICE lighting from base of car (requires an LED controller)
- SL 2308032 SL mini-car 3 Blue LED fixture for ICE lighting from base of car (requires an LED controller)
- SL 2308111 SL mini-car 11 White LED white fixture for Ice load bottom lighting from the base of car (requires an LED controller) (Shown below in an animated sequence.)
- SL 2308112 SL mini-car 11 Blue LED white fixture for ICE lighting from base of car (requires an LED controller)
- SL 2308814 SL mini-car Gondola 14 oz weight fits under coal load, 118x25x22mm with 3M adhesive pad. This fits under any of the drop in loads.
- SL 2212105 Wall mount for upward facing wired LED fixture w Red diffused dome top 5mm LED 2.1V
- SL 2212115 Wall mount upward facing wired LED fixture w Blinking Red diffused dome top 5mm LED 2.1V
- SL 6500000 Brakeman's Box w screws for SL & HLW mini car for DIY projects - no power pickup, no electronics (Shown Below)
- SL 5690006 Brakeman's Box Case w screws + 4 wheel power pickup Mini LED ctrl/dimmer, bridge for track power, anti flicker capacitor for use with SL & HLW mini car. (shown below)
- SL 1109002 Slip-On 2 Step Stairs for Mini Cars (included with crew car and work car
- LGB 64777 Link & Pin Coupler Set of 3
- LGB 64193 Knuckle Coupler Set of 2
- Add other SL Mini-Max cars for a complete train, Including:
- SL 1001000 Flat Car w 6 Posts 39H mm (1.5") posts
- SL 1001100 Flat Car w 6 Posts 39H mm (1.5") posts, 3 Level Stainless Steel Rail Fence on all sides (shown above and below)
- SL 1001200 Flat Car w 6 Posts 39H mm (1.5") posts, 3 Level Rope Fence on all sides, + extra rope (shown above and below)
- SL 1008052 Gondola Car 4 board wall, 118Lx63Wx52H mm (2" wall height)
- SL 1008039 Gondola Car 3 board wall, 118Lx63Wx39H mm (1.5" wall height, waist height) This ad is for this item.
- SL 1008026 Gondola Car 2 board wall, 118Lx63Wx26H mm (1" wall height)
- SL 1008013 Gondola Car 1 board wall, 118Lx63Wx13H mm (0.5" wall height)
- SL 1009039 Work Car w Half Gondola 3 removable boards work-seating area 2 gates toolbox-bench seat 2 removable stairs
- SL 1010039 Crew - Passenger Car, inside dimensions 118Lx63Wx39H mm, removable bench seating on 4 walls 1 gate w Steps
- SL 1011150 Crane Car, inside dimensions 118Lx63Wx150H mm, Working Crane, Half Gondola 1 board wall, tool-box-bench seat, 1 removable stairs (Available 3rd quarter 2022)
- SL 1020150 Half Caboose, inside dimensions 59Lx63Wx150H mm, working door, H2O smoking stove, interior lamp, ext lamps, tool-box-bench seat, 1 gate, 1 removable stairs (Available 3rd quarter 2022)
Replacement Parts:
- SL 1109001 Set of 2 SL Walk-Way platforms with 2 coupling link pins and 4 platform mounting pins - for secure coupling of SL Mini cars - Black Hi Temp. ABS plastic (Included with all Mini-Max Cars) (shown above and below - note that only one coupling pins is required per car for coupling but 2 are provided with each set)
Photos:

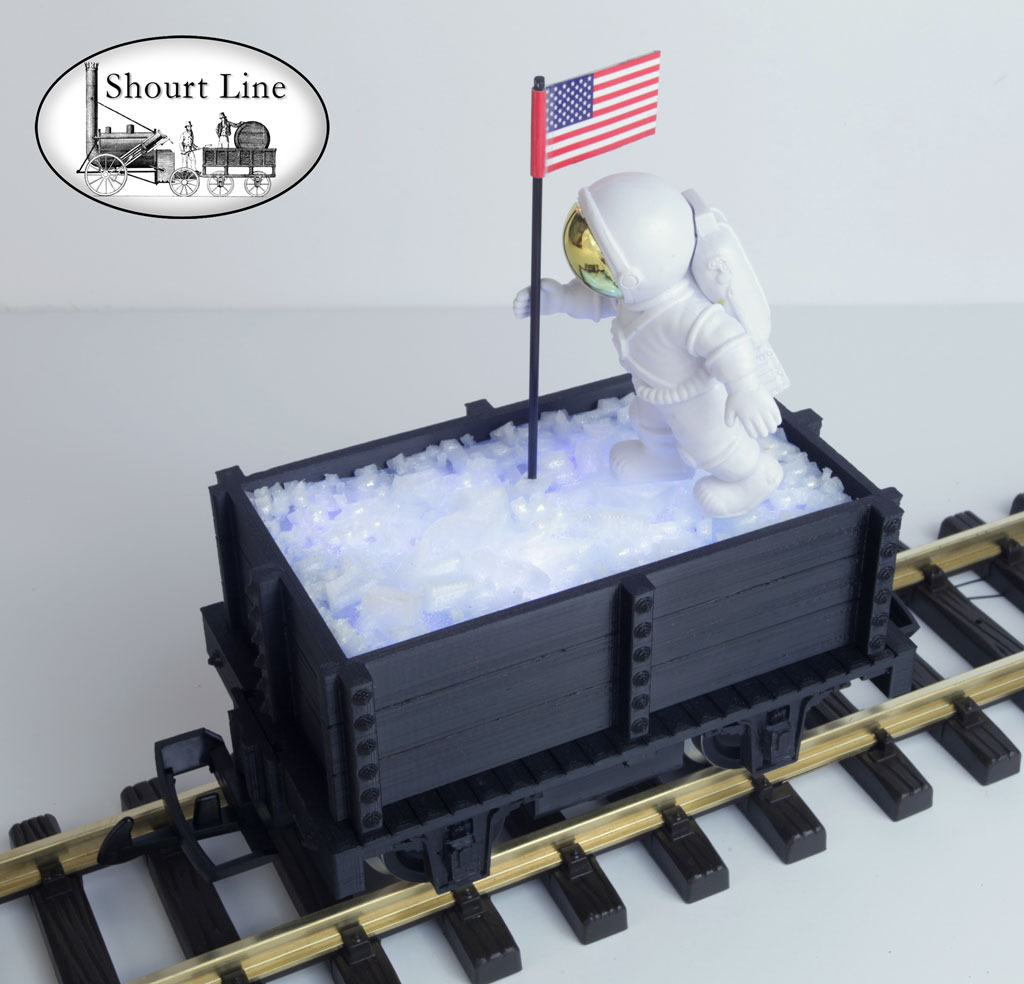

The LED controller can adjust the brightness as desired, works outdoors in full sun and at night the ice illuminates the Astronaut and American Flag.
Bottom view showing the included SL 5690006 Brakeman's Box Case with 4 wheel power pickup. the case contains; a Mini LED ctrl/dimmer, bridge for track power and anti flicker capacitor.

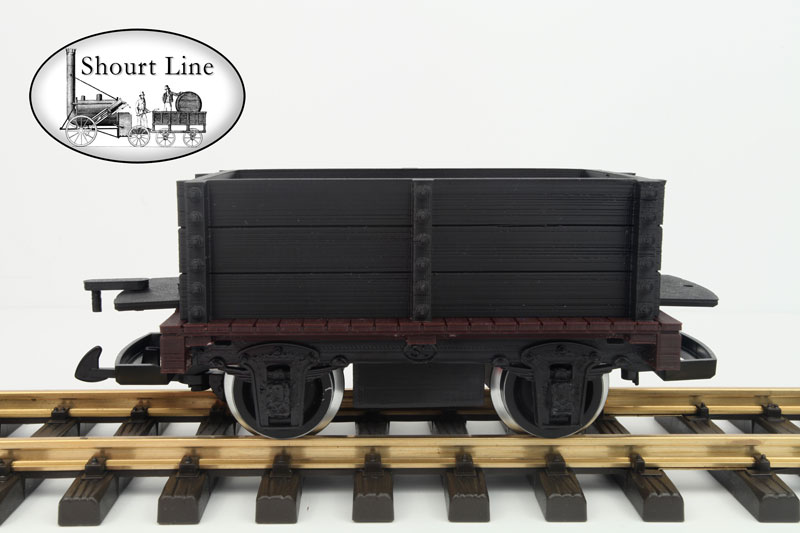

Side view showing both LGB hook and loop couplers and the SL Walk-Way Platforms and Link-Pin coupler installed. The Ice Load, Astronaut and American Flag with Pole have been lifted off. (track, figures platforms, other cars, and lighting fixtures are not included with item)
Above is a animated sequence showing both the LGB hook and loop couplers and the SL Walk-Way Platforms and Link-Pins that can be installed at the same time. Also shown is the SL 6500000 Brakeman's Box w screws.
(track not included with item)
An animated sequence shows couplers included with the car. Both the LGB Hook and Loop couplers and SL Walk-Way platforms can be installed a the same time. Shown above is the optional SL 2308001 Coal Load dropped into the top of the gondola.
Shown above is an animated photo of the installed SL 2308111 11 White LED white fixture for Ice illumination. (track not included with item)

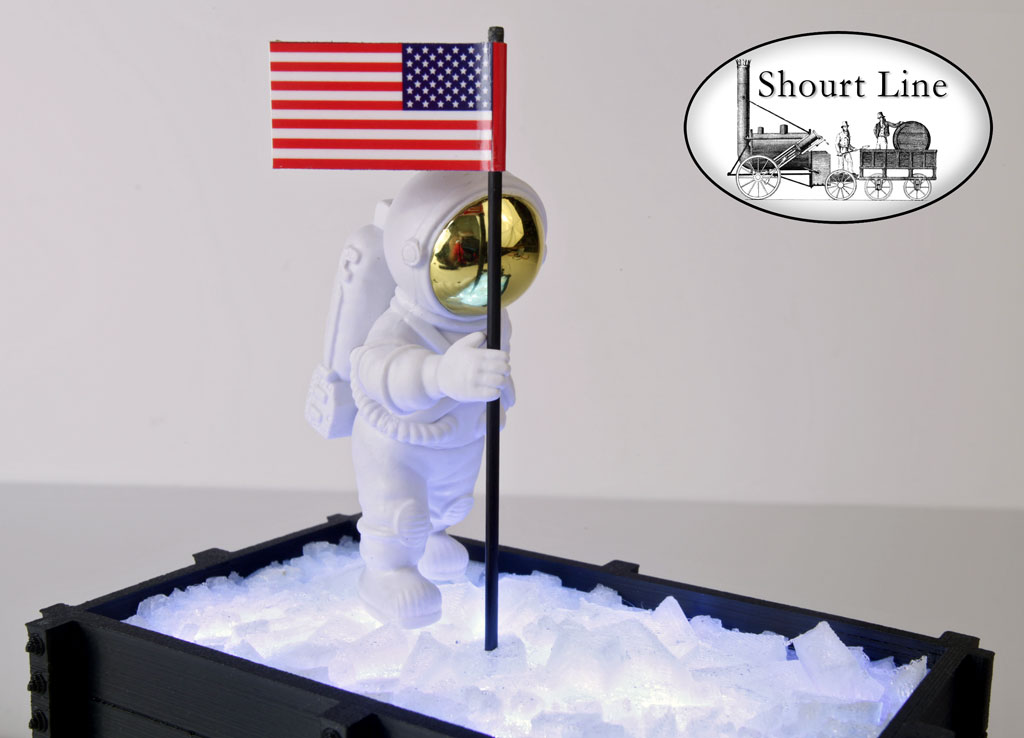

The Astronaut and flag pole are removable for storage. The black gondola top is shown above is available, borown is standard. The car base standard color is dark brown, black color base is available on request.

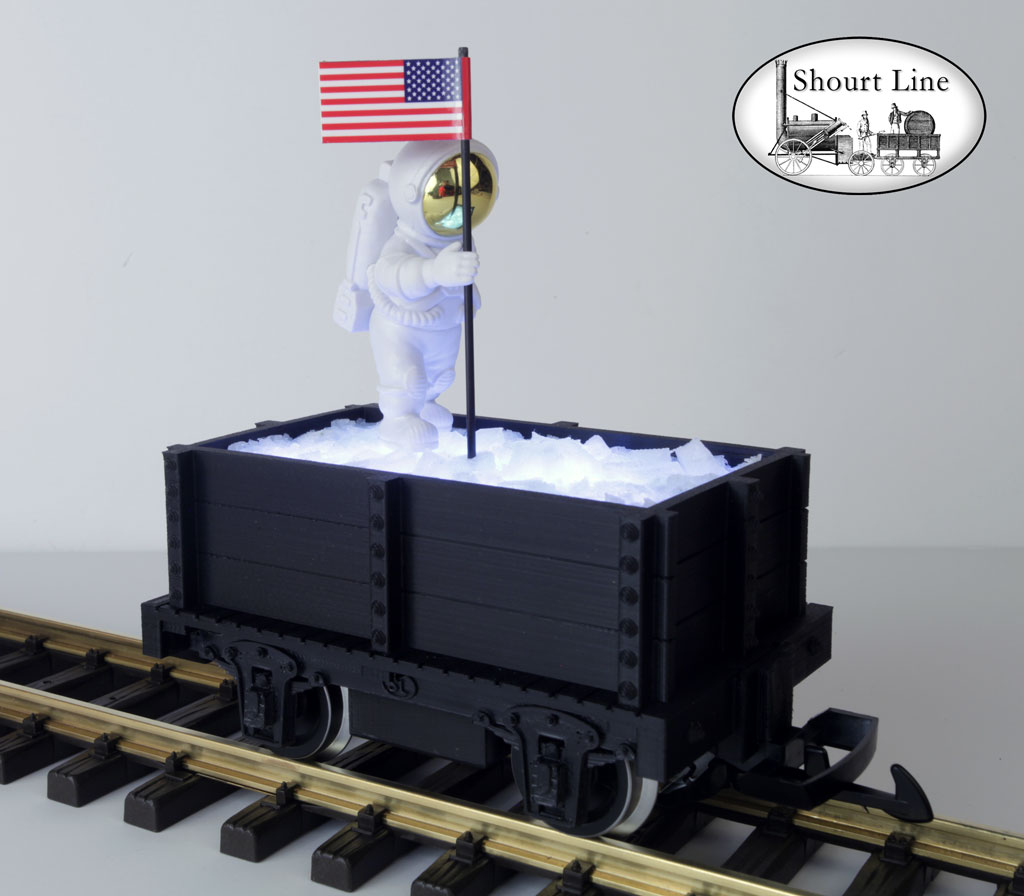

Don't miss this limited edition SL 9011139 4th of July Celebration Mini-Max Gondola now leaving the station! (track is not included with item)
